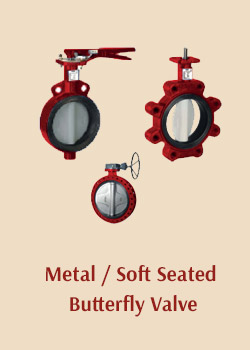

Metal / Soft Seated Butterfly Valve
| Design | Wafer, Lugged, Flanged |
| Size | 2"- 40"Wafer, Lug; 2"- SO"Flanged |
| Pressure Class | PN10, PN16, PN25, PN40 and ANSI 150, 300, 600 |
| Body Material | Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel |
| Seat | Buna N, EPDM, Viton, Silicone, PTFE, Meta |
| Disc | Ductile iron (Nylon/Aroxy coated), Stainless Steel |
| Shaft | Carbon Steel (Zinc plated), Stainless Steel |
| Operation | Manual/ Actuator |

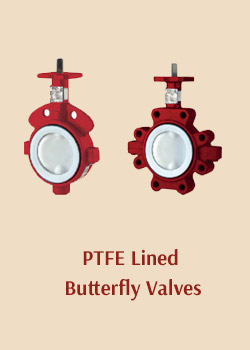

PTFE Lined Butterfly Valves
| Design | Wafer, Lugged |
| Size | 2"-24" |
| Pressure Class | PN10 |
| Body Material | Cast Iron (Nylon/ Epoxy coated), Ductile Iron, Carbon Steel, Stainless Steel |
| Seat | PTFE |
| Disc | Stainless Steel (PFA I PTFE lined) |
| Shaft | Stainless Steel |
| Operation | Manual/ Actuator |

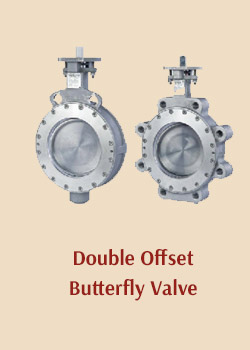

Double Offset Butterfly Valve
| Design | Wafer, Lugged, Flanged |
| Size | 2"- 40"wafer and lug; 3"- 24" Flanged |
| Pressure Class | Class 150, 300, 600 |
| Body Material | Ductile Iron, Carbon Steel, Stainless Steel |
| Seat | PTFE, RPTFE, EPDM, Buna N, Viton, Silicone, Metal |
| Disc | Carbon Steel, Stainless Steel |
| Shaft | Stainless Steel |
| Operation | Manual/ Actuator |

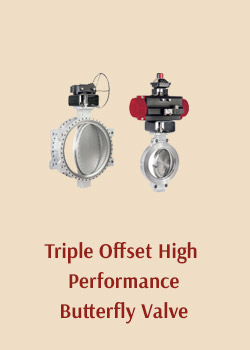

Triple Offset High Performance Butterfly Valve.
| Design | Wafer, Lug, Double Flange and Butt weld |
| Size | 3"-48" |
| Pressure Class | Class 150, 300, 600 |
| Body Material | Carbon Steel, Stainless Steel |
| Seat | Metal/lnconel + Graphite/PTFE |
| Disc | Carbon Steel, Stainless Steel |
| Shaft | Stainless Steel |
| Operation | Manual/ Actuator |
