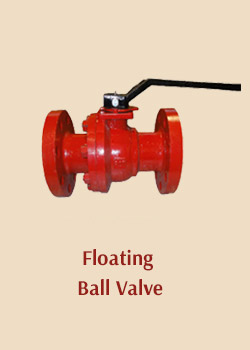

Floating Ball Valve
| Type | 2 Piece, Full Bore/Reduced Bore |
| Size | 15-600 mm/Vi" to 24" |
| Pressure Class | 150-2500 up to 12"; 150-600 for above |
| Body Material | Carbon Steel, Stainless Steel, Alloy Steel |
| Ball | Stainless Steel, Alloy Steels |
| Seat | PTFE, RPTFE, PEEK, Devlon |
| Stem | Forged/ Cast Stainless Steel, Alloy Steel |
| Ends | Flanged, Screwed or Socket Welded |
| Operation | Hand wheel I Actuated |

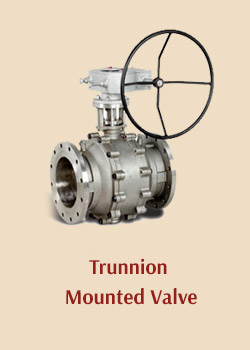

Trunnion Mounted Valve
| Type | 2 Piece/3 Piece Full or Reduced Bore |
| Size | 15-600 mm/ 2" to 24" |
| Pressure Class | 150-2500 up to 12"; 150 for above |
| Body Material | Carbon Steel, Stainless Steel, Alloy Steel |
| Ball | Stainless Steel, Alloy Steels |
| Seat | PTFE, RPTFE, PEEK, Devlon, Nylon, Viton |
| Stem | Forged/ Cast Stainless Steel, Alloy Steel |
| Ends | Flanged, Screwed or Socket Welded |
| Operation | Hand wheel I Actuatedi |

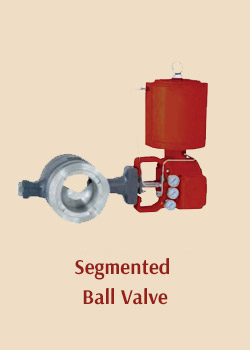

Segmented Ball Valve
| Type | One piece v-ball, Straight-through, wafer |
| Size | 25.4 - 450 mm/ 1 "- 18" |
| Pressure Class | 600 up to 12': 300 up to 16"and 150 for 18" |
| Body Material | All Castable Alloy materials |
| Bonnet | Standard, Extended or Cryogenic |
| Ball | Stainless Steel ( Chrome plating or Stellite) |
| Seat | Clamped, In Self-Aligned Bi, Directional Fleet, Loc-Seal |
| Shaft | Splined I Dead Band Stainless Steel |
| Rangeability | 300: 1 |
| Ends | Flangeless, Flanged (Integral and Separable) |
| Actuator | Spring Cylinder Rotary, Fully Field Reversible |
